PRODUCT Handlebars,Controls & Switches NARROW TRIPLE For Professional

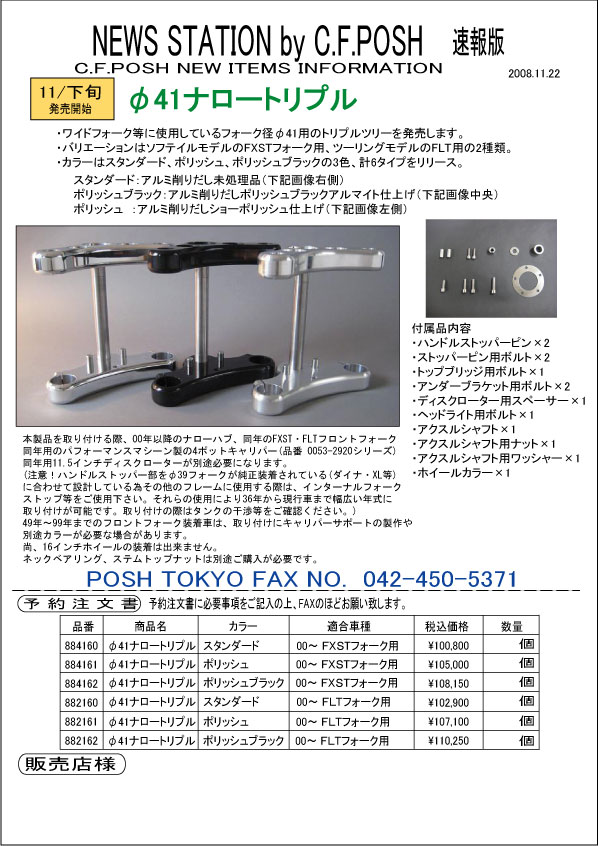

NARROW TRIPLE　News station

Made in JAPAN

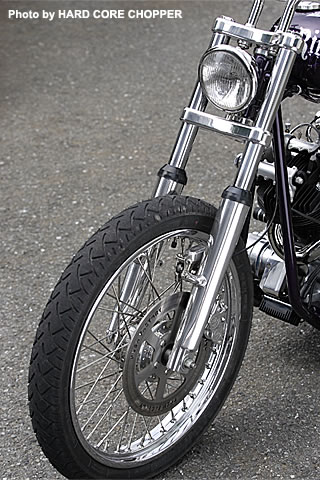

 NARROW TRIPLE ● 41 narrow triple was finally put on the market spending one year or more and repeating making for trial purposes / test . It can be an installation of the disk brake of the reception desk and a bolt it on and by being able to narrow 59mm fork pitch compare d with a wide glide of purity, and by building in parts of our specification.
- If it is 21 inches or 19-inch wheels, 11.5-inch disk rotors, and is an- adjustment of the production of the caliper support and the wheel collar etc. separately and the 41 narrow front fork reception after ‘49, it is possible to use it regardless of the age type.
● It is related to the material and finish, and triple upper and lower tree made by duralumin (A2017) and the axle shaft is made by chromium molybdenum steel (SCM435). It is stainless steels in the disk spacer and the collar. After right material in the right place necessity strength intimately is given by using stainless inch bolt made by DIAMOND company for the installation bolt, corrosion resistance is designed considerately. Because finish also prepares three kinds (standard (unprocessing beginning cutting down) and the show polish and polish black (anodized aluminum after polish), it is possible to choose according to the favorite.
Product # Product name Color Model Retail Price U / M
884160 φ41 NARROW TRIPLE Standard 00～FXST ¥ 100,800 Kit
884161 φ41 NARROW TRIPLE Show polish 00～FXST ¥ 105,000 Kit
884162 φ41 NARROW TRIPLE Polish black 00～FXST ¥ 108,150 Kit
882160 φ41 NARROW TRIPLE Standard 00～FLT ¥ 102,900 Kit
882161 φ41 NARROW TRIPLE Show polish 00～FLT ¥ 107,100 Kit
882162 φ41 NARROW TRIPLE Polish black 00～FLT ¥ 110,250 Kit

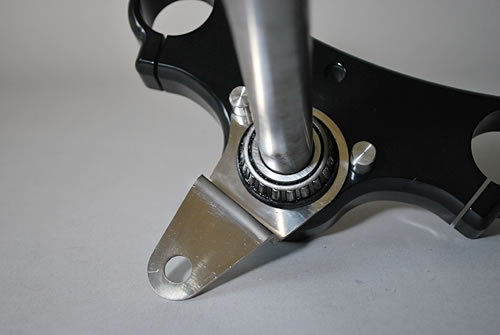

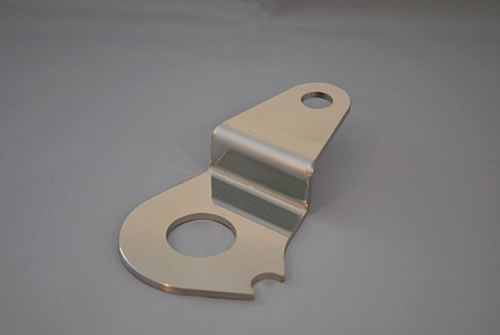

Steering Lock Plate
Fitsφ41Nallow Triple. Shovel & EVO BT Frame.
Plate only.
Made in JAPAN
Steering Lock Plate Steering Lock Plate Click the image for enlargement.
Steering Lock Plate Steering Lock Plate
Product # Product name Specification Retail price
884165 Handle lock Plate for φ41Nallow Triple SUS304 ¥ 5,040

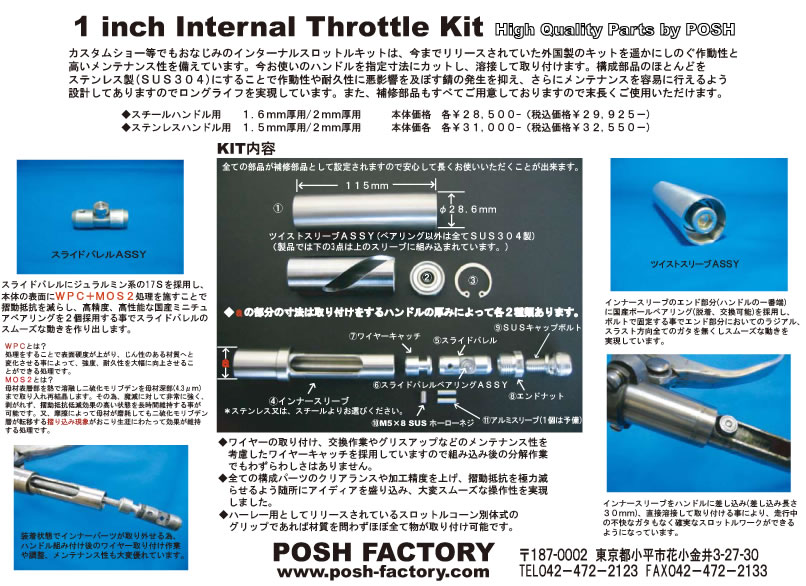

1inch INTERNAL THROTTLE KIT For Professional
In the custom show, The familiar internal throttle kit has operation that far surpasses the kit made of the other countries that has been released up to now and high maintenance. The handle bar used now is cut, welded, and installed in a specified size. Because most in complete parts is designed to suppress the generation of rust to influence operation and durability harmfully made of the stainless steel (SUS304), and to maintain it easily in addition, a long life has been achieved. Moreover, because all the repair parts are prepared, it is possible to use it forever.
Made in JAPAN
1inch INTERNAL THROTTLE KIT 1inch INTERNAL THROTTLE KIT 1inch INTERNAL THROTTLE KIT leaflet

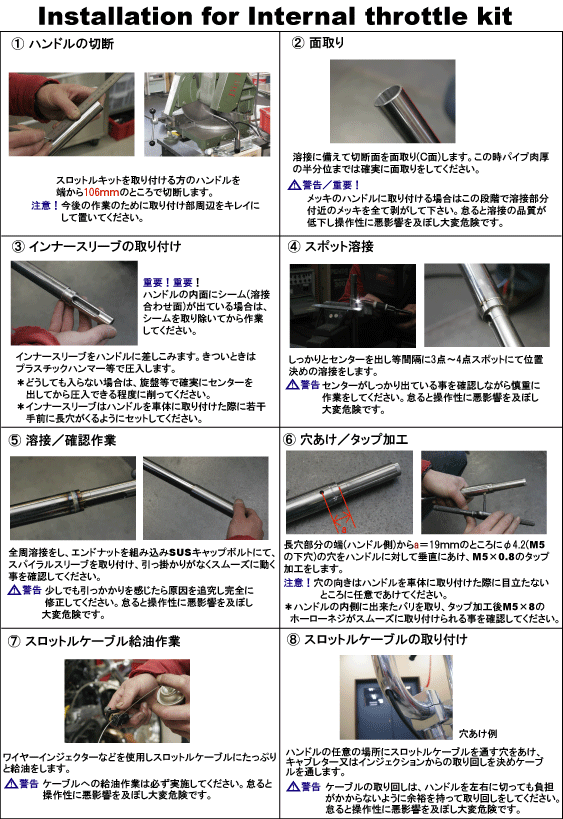

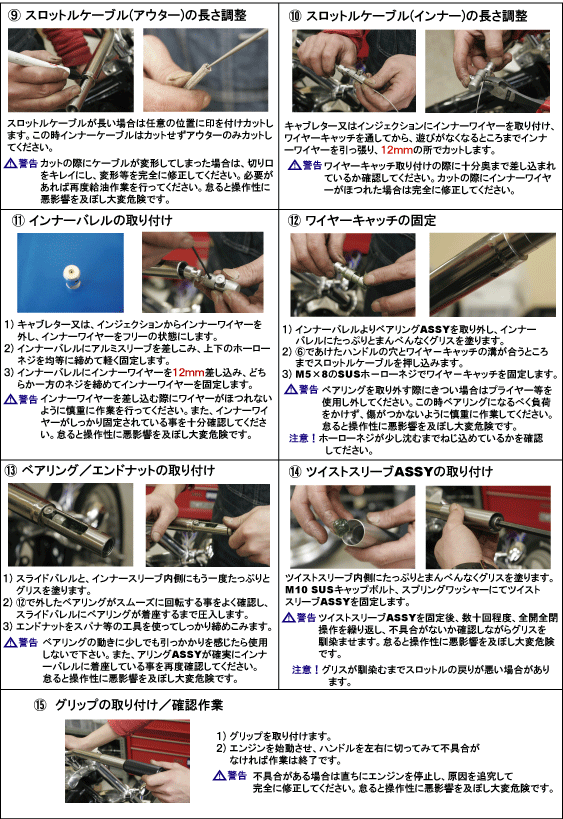

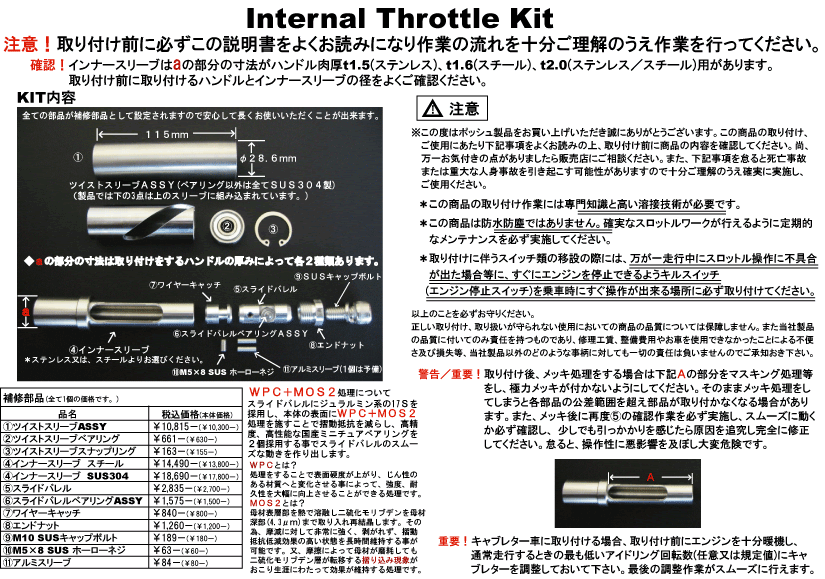

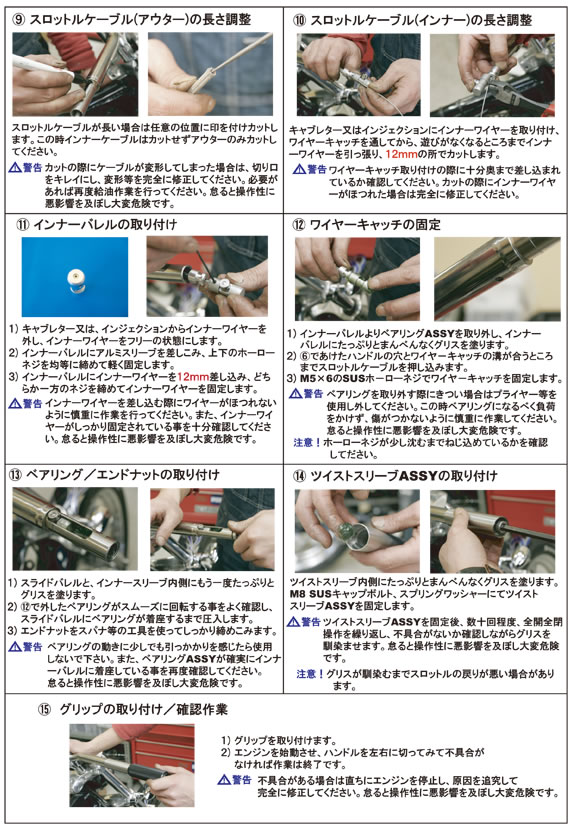

Instruction manual 1 Instruction manual 2 Instruction manual 3 Leaflet

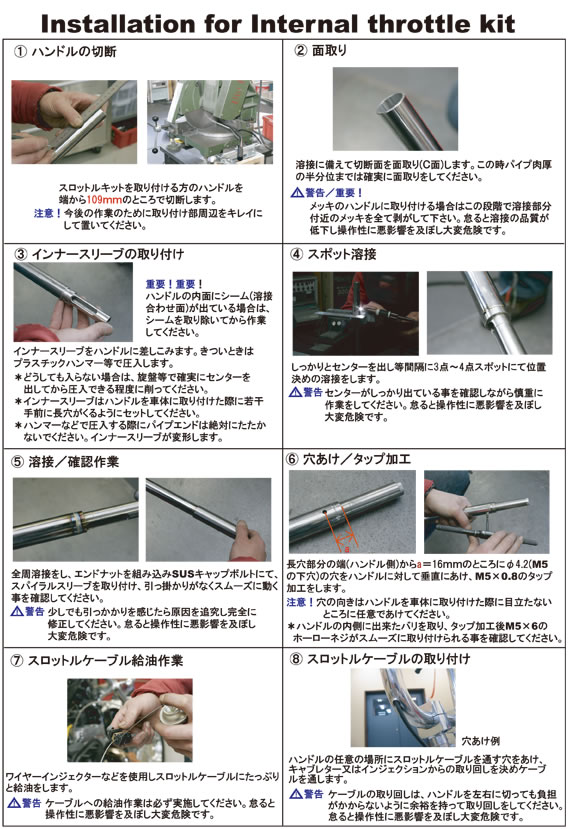

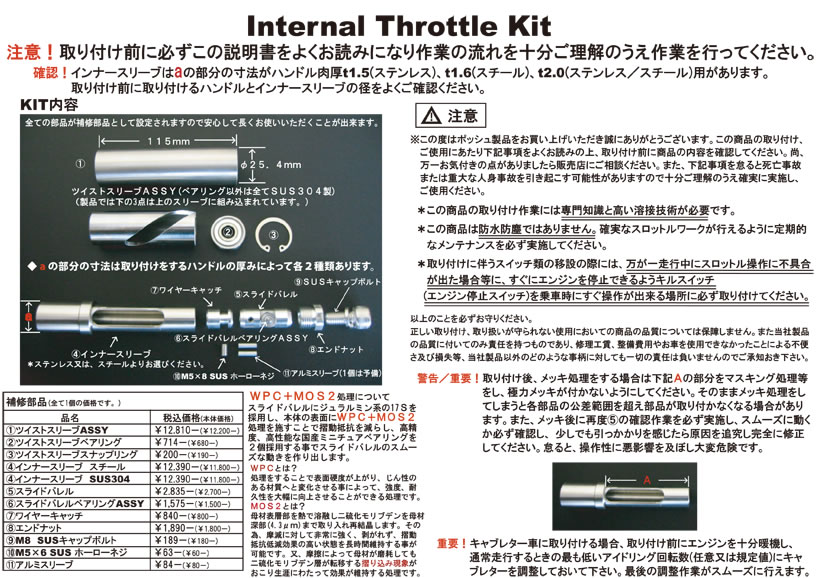

・Click here for download the internal throttle kit instruction manual. (PDF version)
・Click here for download the leaflet. (PDF version)
Product # Product name Specification Retail Price U / M
880370 Internal Throttle Kit 1.6mm Steel ¥ 29,925 Kit
880371 Internal Throttle Kit 2mm Steel ¥ 29,925 Kit
880375 Internal Throttle Kit 1.5mm Stainless Steel ¥ 32,550 Kit
880376 Internal Throttle Kit 2mm Stainless Steel ¥ 32,550 Kit
Push Type INTERNAL THROTTLE KIT for LINKERT CARB

Product # Handlebar Thickness Material Retail Price U / M
880360 1.6mm Steel ¥ 29,925 Kit
880361 2mm Steel ¥ 29,925 Kit
880365 1.5mm Stainless Steel ¥ 32,550 Kit
880366 2mm Stainless Steel ¥ 32,550 Kit
WIRE FOR LINKERT CARB of INTERNAL THROTTLE KIT

Product # Outer Cable Length Retail Price U / M
880286 Black Vinyl 1,500mm ¥ 2,940 Kit
7/8(22.2mm) INTERNAL THROTTLE KIT For Professional
An internal throttle kit for 7 / 8inch( φ 22.2mm) that there was many of a demand finally released.

Smooth operation and made of maintenance excellent, to decrease the sliding resistance as it is thoroughly as the WPC+MOS processing is given to the slide parts by using three highly accurate ball bearings for the rotation axis this time, a special design is done as well as a past kit.
Moreover, it is a stainless steel almost in complete parts Generation is suppressed and the length life of rust also that is the cause of operation and durability in (SUS304) has been achieved.
Please choose the inner sleeve that is welded and installed in the handle bar according to the material and the thickness of the pipe.

(* The processing to the inner sleeve might become necessary by the allowance of the pipe material of the handle bar.)
Made in JAPAN

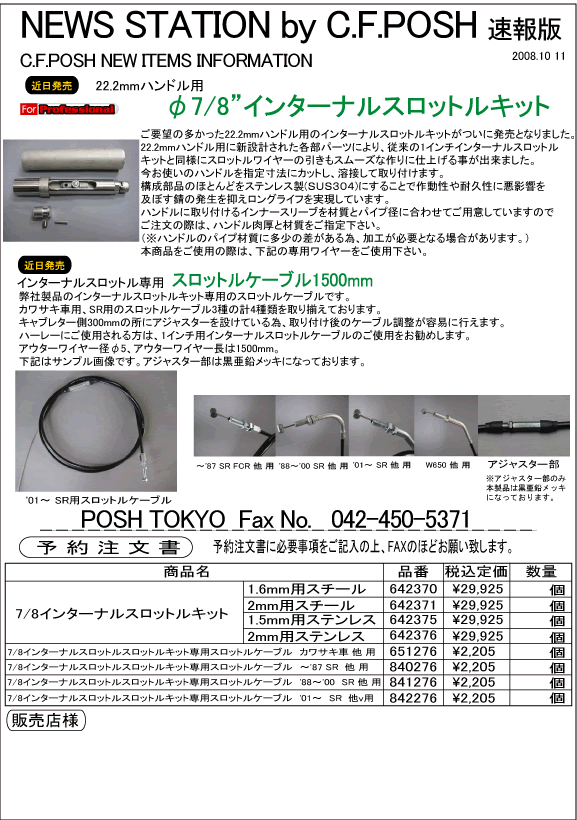

Leaflet Instruction manual 1 Instruction manual 2 Instruction manual 3
Leaflet Instruction manual 1 Instruction manual 2 Instruction manual 3

・Click here for download the 7/8inch internal throttle kit instruction manual (PDF version)
Product # Product name Specification Retail Price U / M
642370 7/8 φ internal throttle Steel for 1.6mm ¥ 29,925 Kit
642371 7/8 φ internal throttle Steel for 2mm ¥ 29,925 Kit
642375 7/8 φ internal throttle Stainless steel for 1.5mm ¥ 29,925 Kit
642376 7/8 φ internal throttle Stainless steel for 2mm ¥ 29,925 Kit

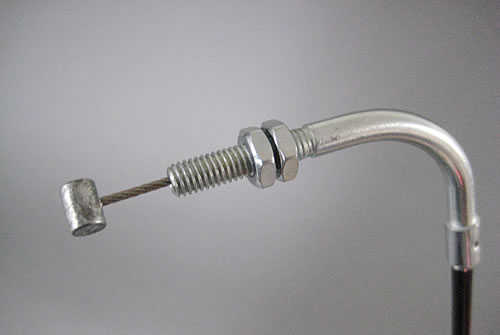

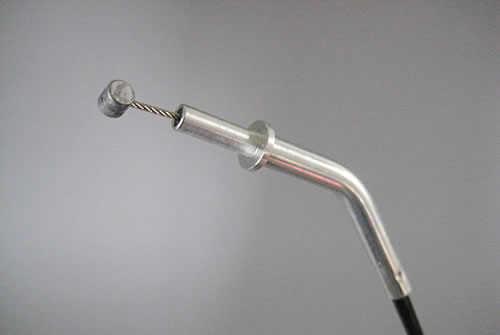

WIRES FOR INTERNAL THROTTLE KIT For Professional
It is a throttle cable for exclusive use of an internal throttle. It is with an adjuster for adjustment of an inner wire. It is easy to hold, gap adjustment after installation and maintenance and is very convenient. In addition, it is possible for certain installation because it is installed exclusive metal fittings in carburetor installation part. Also, it is a product made in stainless steel, an inner wire resists rust and is strong. We have two types of black or stainless steel mesh, length among 1,300mm, 1,500mm, and 1,800mm by a custom uses and various purposes.
Made in JAPAN

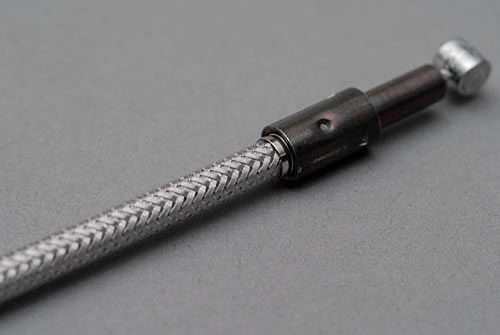

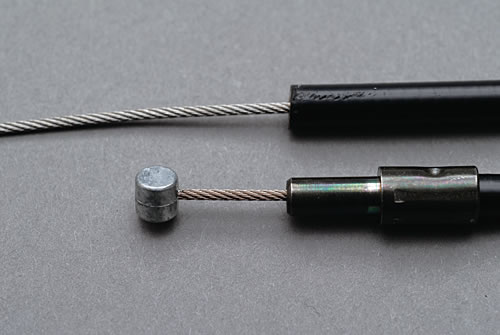

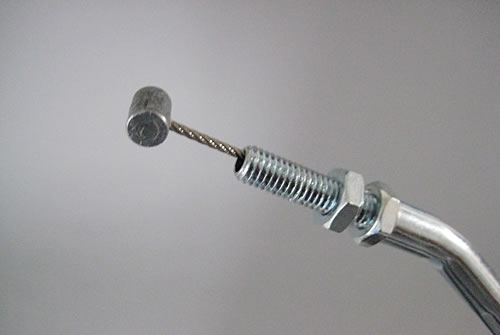

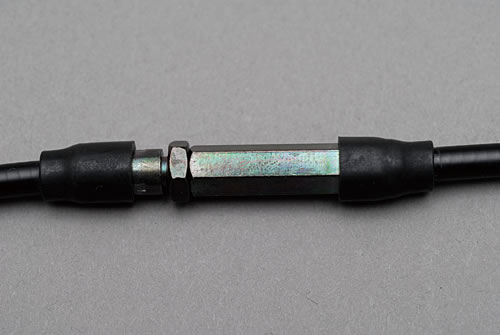

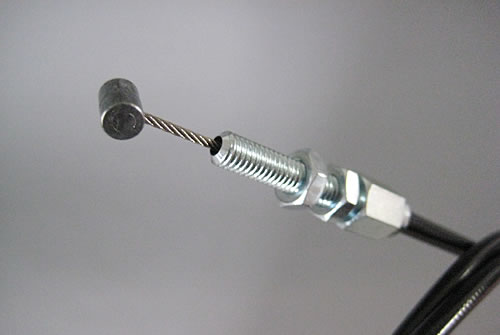

Black wire Mesh wire Installation part Adjuster part
Product # A wire length (An outer) Type Retail Price U / M
880275 1300mm Black ¥ 2,205 Each
880276 1500mm Black ¥ 2,310 Each
880277 1800mm Black ¥ 2,415 Each
880265 1300mm Stainless steel mesh ¥ 3,255 Each
880266 1500mm Stainless steel mesh ¥ 3,360 Each
880267 1800mm Stainless steel mesh ¥ 3,465 Each

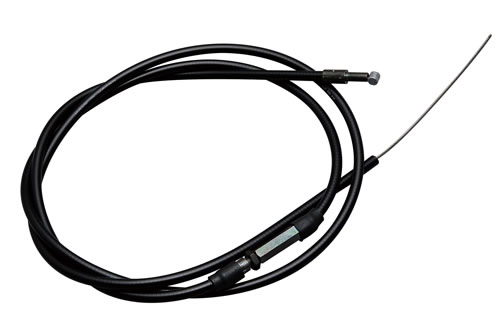

It is a throttle cable only for an internal throttle.
The installation the following play adjustment and maintenance are done easily and it is very convenient because it is addition of the adjuster for the adjustment of the inner wire. Moreover, you can choose from 4 kinds of metal fittings in the carburetor installation part are preparatory by the installed model (carburetor), and confirm the carburetor installation part of the wire used now. It is strong, and strong in rust in making the inner wire made of the stainless steel.
Black vinyl court finish and 1500mm in length of wire is available.
Made in JAPAN
Type1 Type2 Type3 Type4
Type 1 Type 2 Type 3 Type 4
Product # Wire Length Type Retail Price U / M
840276 1500mm TYPE1 ¥ 2,205 Each
841276 1500mm TYPE2 ¥ 2,205 Each
842276 1500mm TYPE3 ¥ 2,205 Each
651276 1500mm TYPE4 ¥ 2,205 Each

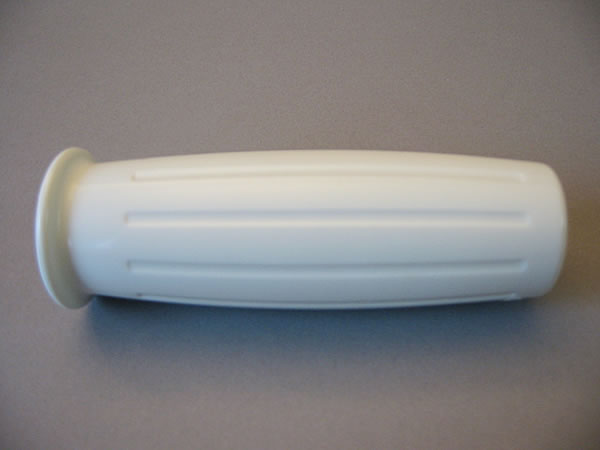

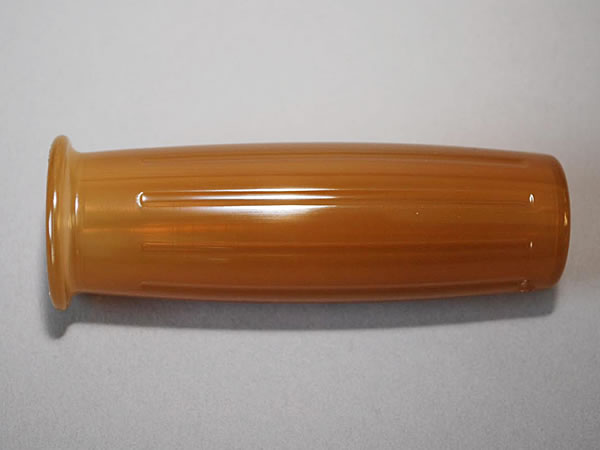

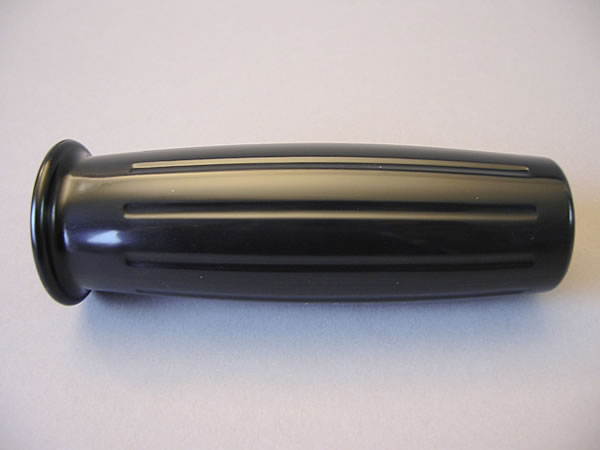

EARLY BARREL GRIP
It is a grip produced sticking to over the detail such as total length designed to suit shape of saliva that considered the match with the mini switch and a simple handle bar, lame conditions, and color though it is a design that is reminiscent of the AMAL type of 60's.
Made in JAPAN
* Choosing from according to each of four colors and two size for handle bar diameter φ1inch(φ25.4mm) and 7/8inch(φ22.2mm).
Black White
New color

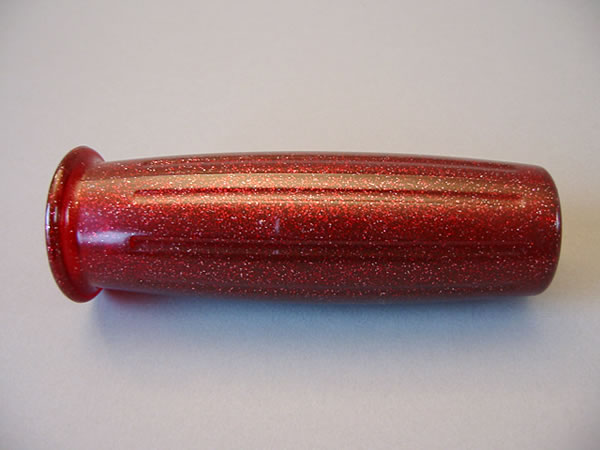

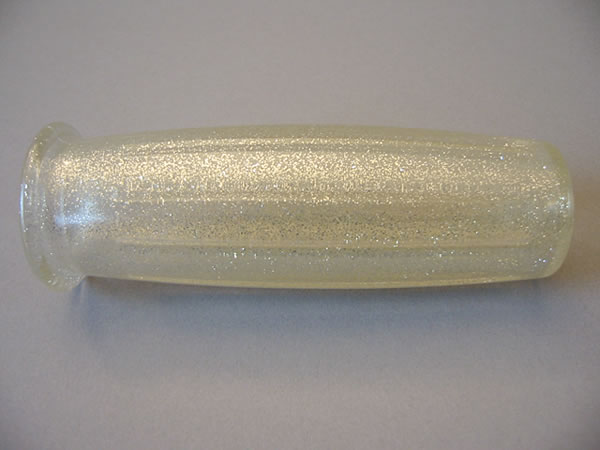

Light Brown		 Flake Red Flake Silver
New color

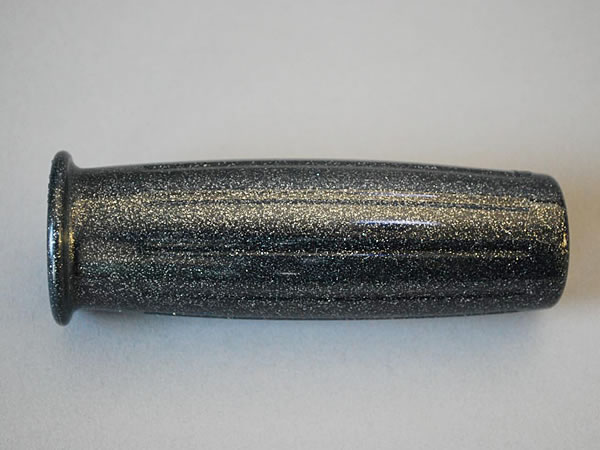

Flake Smoke

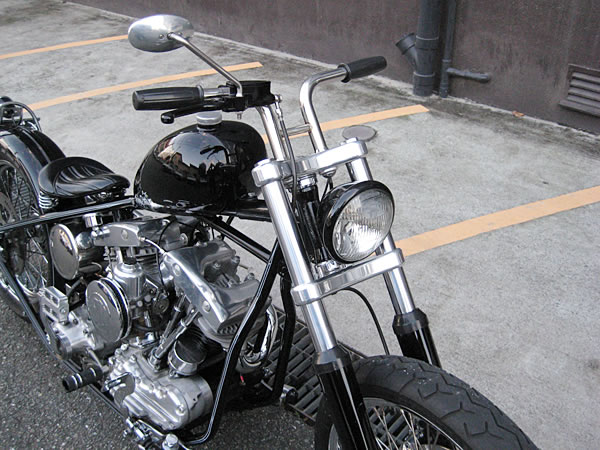

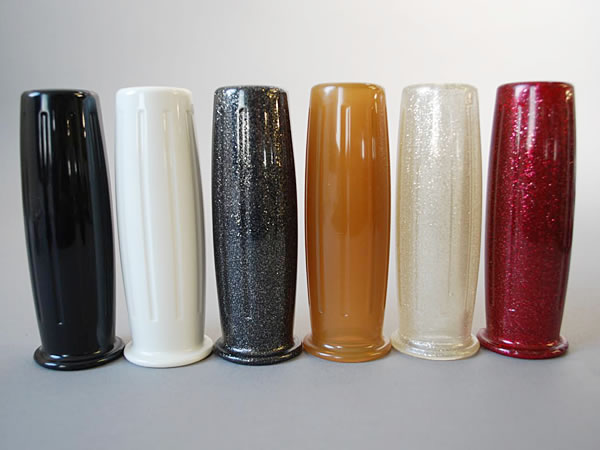

6 colors installed example Click the image for enlargement.
Product # Product name Color Handle bar diameter Plug length Retail Price U / M
811440 Early barrel grip Black φ7 / 8inch / φ22.2mm 115mm ¥ 1,890 Pair
811441 Early barrel grip White φ7 / 8inch / φ22.2mm 115mm ¥ 1,890 Pair
811445 Early barrel grip Light Brown φ7 / 8inch / φ22.2mm 115mm ¥ 1,890 Pair
811442 Early barrel grip Flake Red φ7 / 8inch / φ22.2mm 115mm ¥ 2,100 Pair
811443 Early barrel grip Flake Silver φ7 / 8inch / φ22.2mm 115mm ¥ 2,100 Pair
811444 Early barrel grip Flake Smoke φ7 / 8inch / φ22.2mm 115mm ¥ 2,100 Pair
Product # Product name Color Handle bar diameter Plug length Retail Price U / M
811450 Early barrel grip Black φ1inch / φ25.4mm 115mm ¥ 2,520 Pair
811451 Early barrel grip White φ1inch / φ25.4mm 115mm ¥ 2,520 Pair
811455 Early barrel grip Light Brown φ1inch / φ25.4mm 115mm ¥ 2,520 Pair
811452 Early barrel grip Flake Red φ1inch / φ25.4mm 115mm ¥ 2,730 Pair
811453 Early barrel grip Flake Silver φ1inch / φ25.4mm 115mm ¥ 2,730 Pair
811454 Early barrel grip Flake Smoke φ1inch / φ25.4mm 115mm ¥ 2,730 Pair

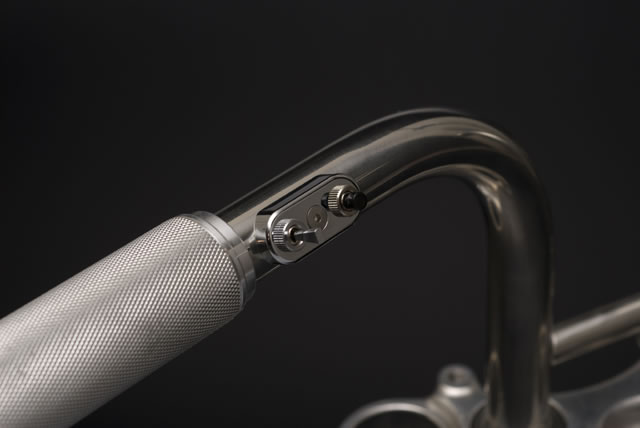

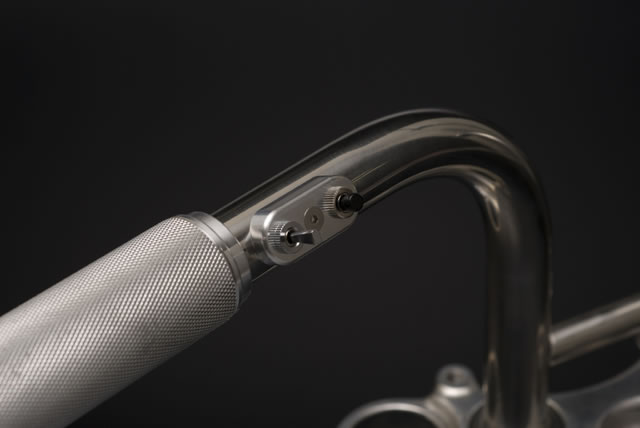

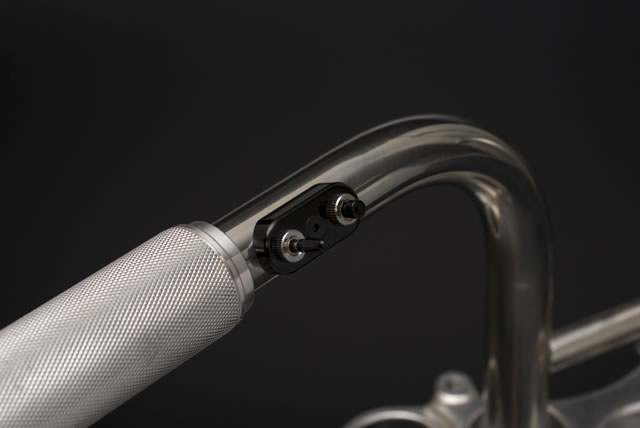

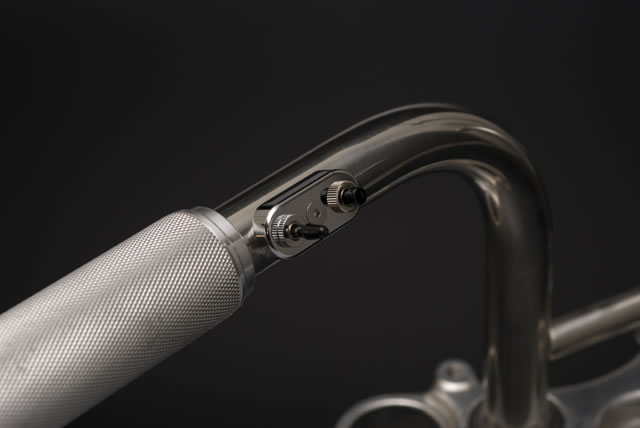

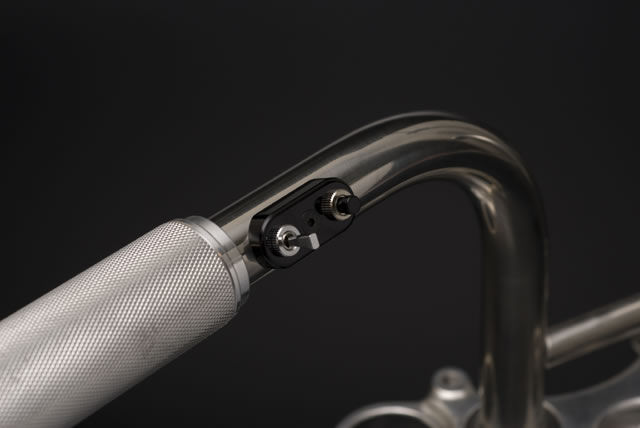

MINI SWITCH For Professional
Mini-switch explanation
It has a favorable reception very much.
It is a mini switch for blinker/horn for the 1inch or 7/8inches handle bar.
It produces with beginning cut everything down, and the switch bracket is finished up in the switch bracket. We prepare many switches, and you can choose according to 28 all kinds.
The switch bracket considers the size with other combination parts such as the clutch levers. It is designed to become small as much as possible, and the custom around a simple handle bar.

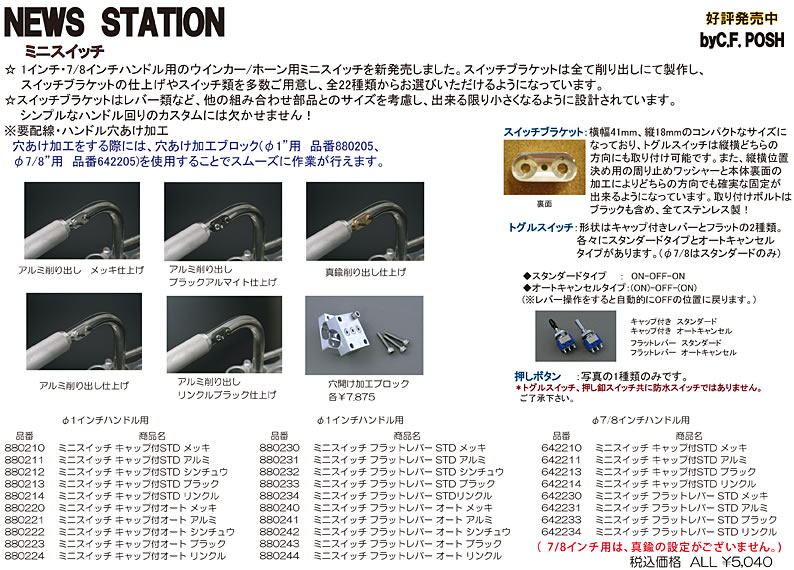

Mini-switch explanation
Click here for Mini-switch article explanation. (PDF version)
Made in JAPAN

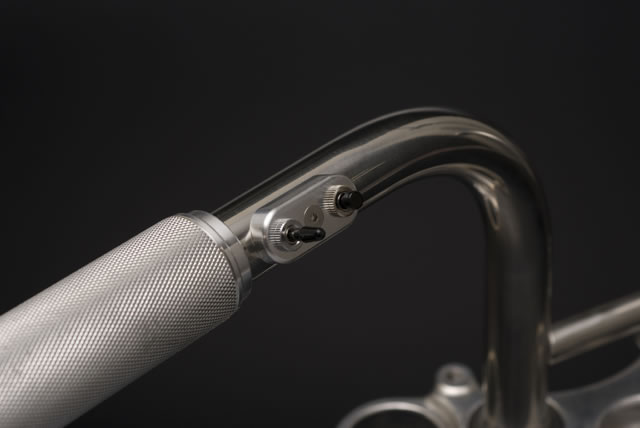

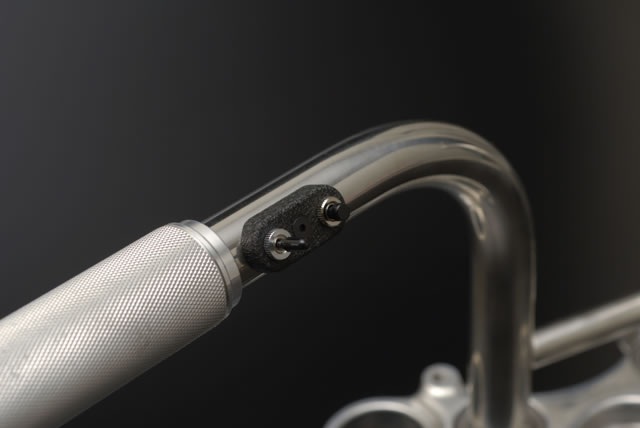

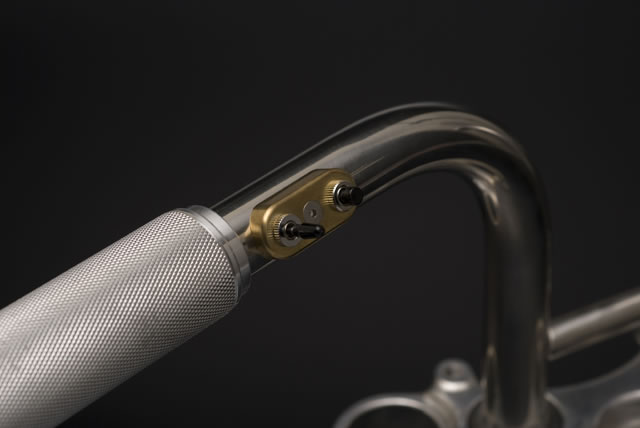

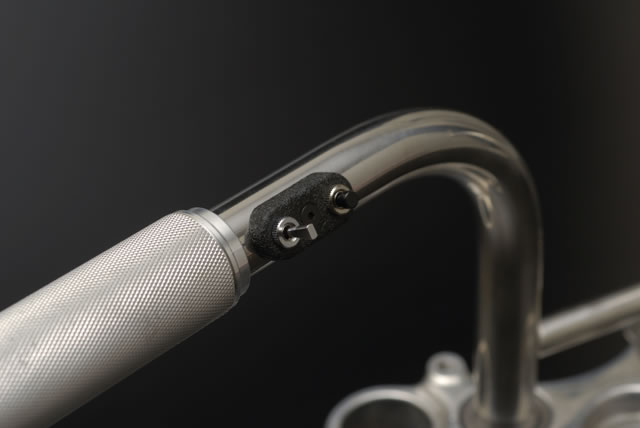

With aluminum cap Aluminum flat With black cap Black flat With plating cap Plating flat
With brass cap Brass flat With wrinkle cap Wrinkle flat Holing open

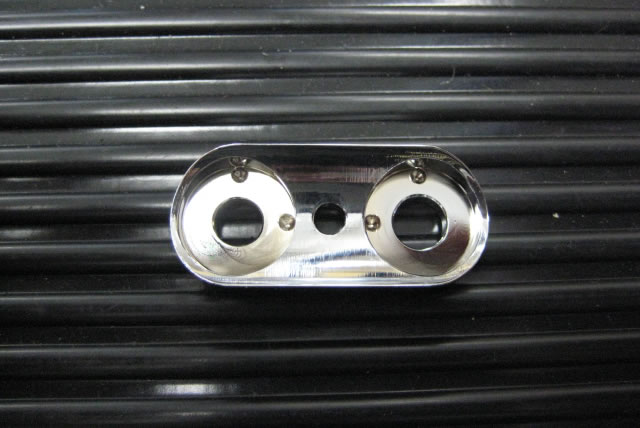

processing block		 The back side
(The expansion image can see the image above in the click.)
Retail price ¥  5,040 for more details look at above article explanation entirely.
Holing open processing block ¥  7,875

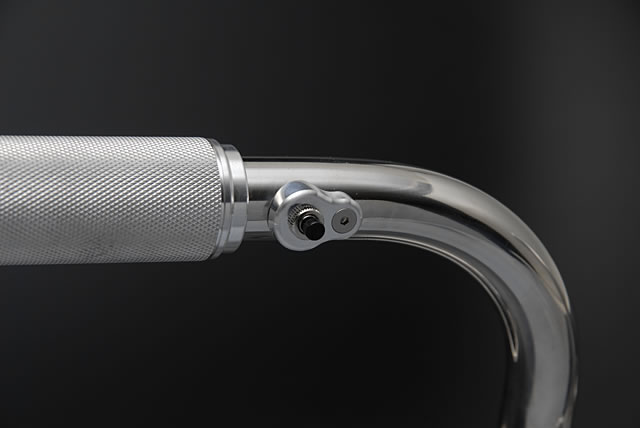

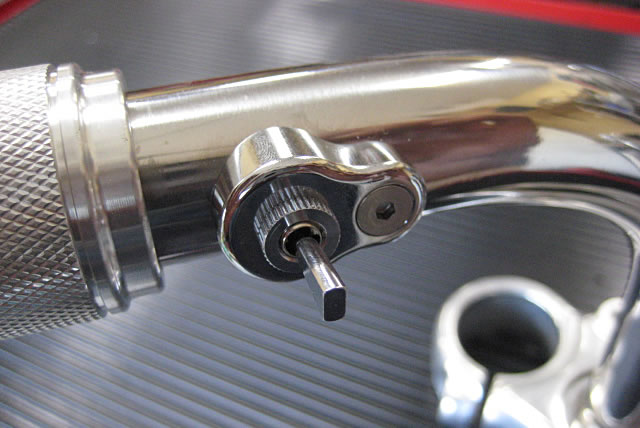

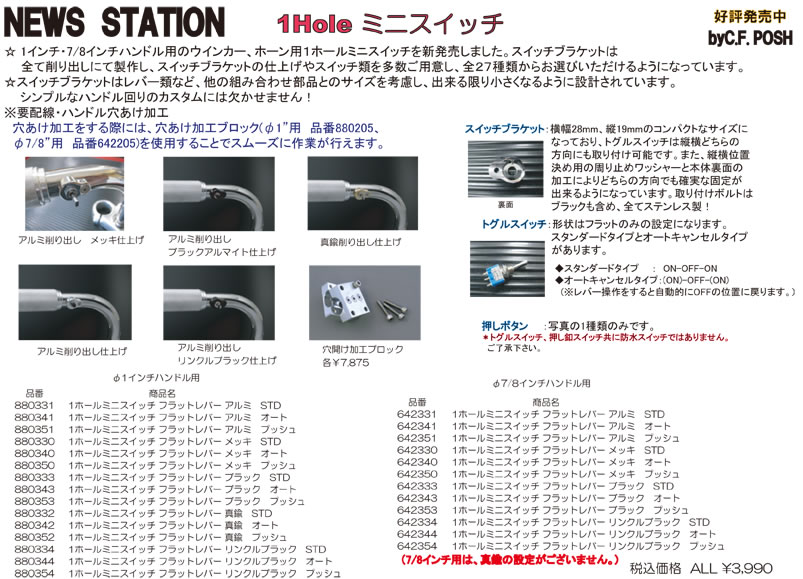

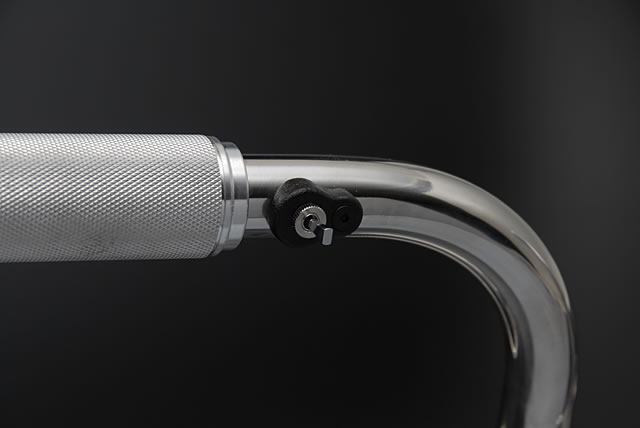

1 HOLE MINI SWITCH For Professional
One hall Mini-switch explanation
One hall type of the mini switch with a lot of demands became a new sale.
For blinker or horn for 1 inch or 7/8 inch handle bar.
It produces it with beginning cut everything down, and the switch bracket is finish and a switch of the switch bracket.
Many can prepare the kind, and it choose according to 27 all kinds.

The switch bracket considers the size with other combination parts such as the clutch levers. It is designed to become small as much as possible, and the custom around a simple handle bar.

One hall Mini-switch explanation
Click here for Mini-switch article explanation. (PDF version)
Made in JAPAN
Aluminum cut with
finishing plating		 Aluminum cut with
black anodized
aluminum		 Brass cut out finish Aluminum cut finish Aluminum cut with
wrinkle black finish

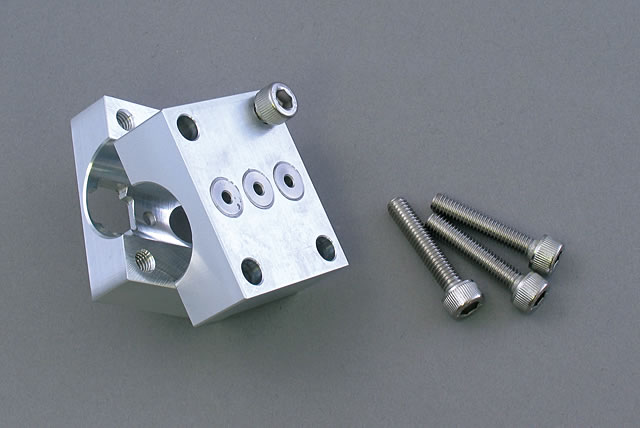

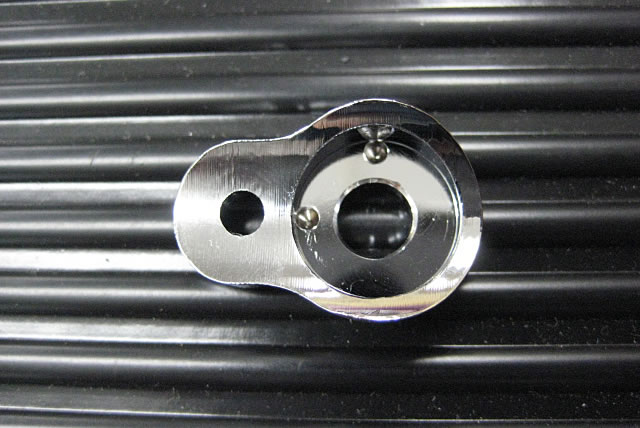

Holing open
processing block		 One hall mini switch
back side
(The expansion image can see the image above in the click.)
Retail price ¥  3,990 For more details look at above article explanation entirely.
Holing open processing block ¥  7,875

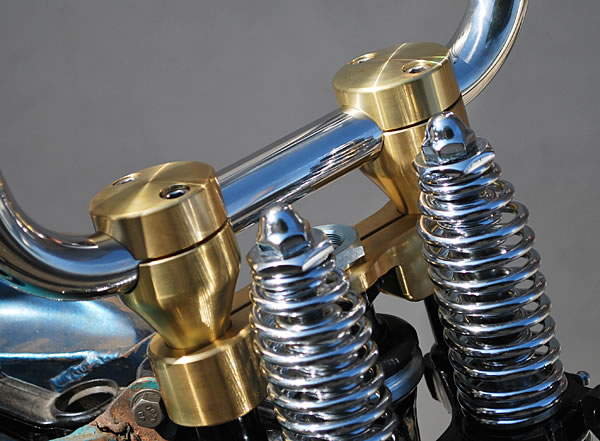

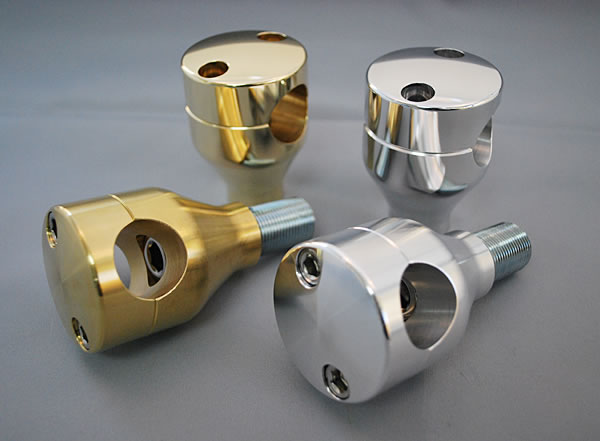

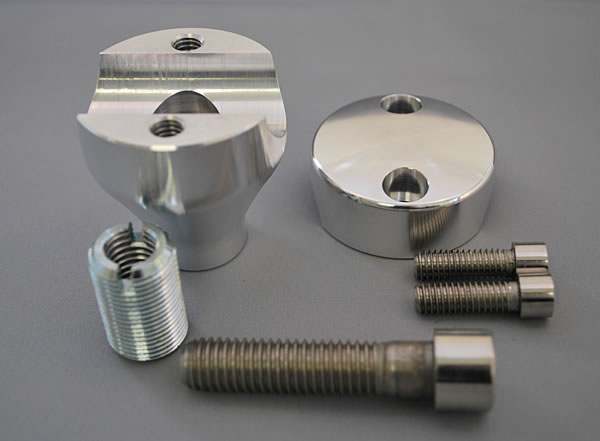

Spring Fork Riser
Fit’s 45 & 74 Replica Spring fork rear leg with M20 P1.5 threads.
Available in Aluminum or Brass, bare or polish.
Made in JAPAN

The expansion image can see the image above in the click.
Product # Product name Specification Finish Retail price U / M
880315 Spring Fork Riser Aluminum Bare ¥ 22,890 Pair
880316 Spring Fork Riser Aluminum Polish ¥ 26,040 Pair
880317 Spring Fork Riser Brass Bare ¥ 26,040 Pair
880318 Spring Fork Riser Brass Polish ¥ 29,190 Pair
Spring Fork Top Tee

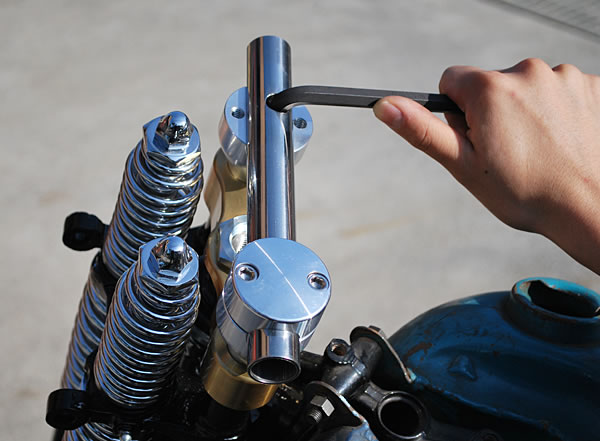

Easy installation for POSH Spring Fork Riser.
Made in JAPAN
Spring Fork Top Tee Spring Fork Top Tee - Brass Click the image for enlargement.
Product # Product name Specification Retail price

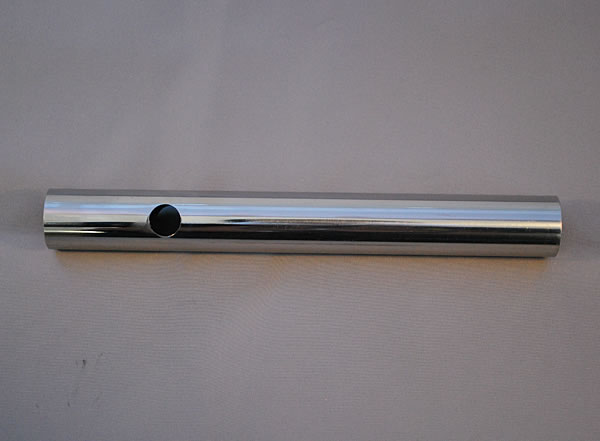

880319 Tool for Spring Fork Riser Stainless ¥ 1,260

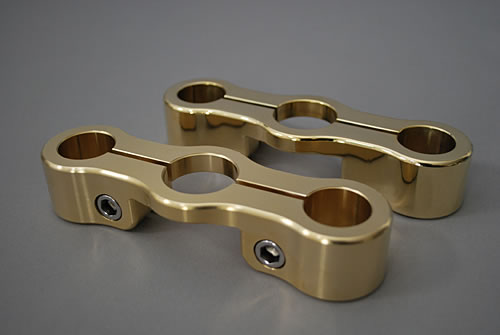

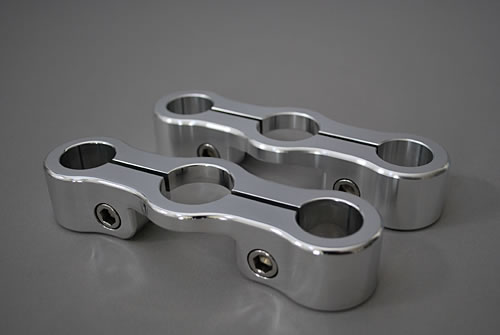

Spring Fork Top Tee
Fits 45&74 Inline Spring Fork.
Available in Aluminum or Brass, bare or polish.
Made in JAPAN
Spring Fork Top Tee Spring Fork Top Tee - Brass Click the image for enlargement.
Spring Fork Top Tee Spring Fork Top Tee - Brass
Product # Product name Specification Finish Retail price
880310 Spring Fork Top Tee Aluminum Bare ¥ 14,490
880311 Spring Fork Top Tee Aluminum Polish ¥ 16,590
880312 Spring Fork Top Tee Brass Bare ¥ 18,690
880313 Spring Fork Top Tee Brass Polish ¥ 20,790
TT HANDLE #1
Replica handle bar of Flanders type has taken side with racer of Legend.

It thoroughly sticks to detail in each part like ring shape, throttle/shape of the grip part of holing for distributor wire and the balance of bending.
All bend processing by our own company pipe vender machine and put of the row/welding/smoothing/holing open processing is done at the factory in our company, and the quality control is also thorough.
Made in JAPAN
● It fits to parts of the inner throttle of BT36-48 about the throttle parts.
　* Fitting parts
   56287-36/handle bar’s end nut, 56245-35/handle bar spiral, 3316-31/plunger, 9281/pin,
   56281-31/Roller block and 56278-10/colors.
● When installing it, it is necessary to match genuine part of # 56245-35(spiral) to the handle bar and
   to make it short.
● The width of the handle bar is about 80cm.
TT handle bar ♯1 (1) TT handle bar ♯1 (2) TT handle bar ♯1 (3) TT handle bar ♯1 (4) TT handle bar ♯1 (5) TT handle bar ♯1 (6) TT handle bar ♯1 (7) TT handle bar ♯1 (8) TT handle bar ♯1 (9)
（1） （2） （3） （4） （5） （6） （7） （8） （9）
Click the image for enlargement.
Product # Product name Specification Retail price
882155 TT steering wheel ♯1　φ25.4　80Ｒ Made of steel and chrome plating finish ¥ 44,100
882156 TT steering wheel ♯2　φ25.4　65R Made of steel and chrome plating finish ¥ 44,100
φ1inch Bend Pipe 90°(ｔ＝2ｍｍ) For Professional
It is a bend pipe of the φ1 inch corresponding to various processing depending on the production of the handle bar with the combination with a weld on short riser and the idea.
It produces the pipe with a little transformation according to its own pipe vender. It is possible to choose from three kinds and the stainless steel or the steels of bend angle difference.
In addition, the order of the special order hears length or the change of the angle, too. Please use it by all means.
Made in JAPAN

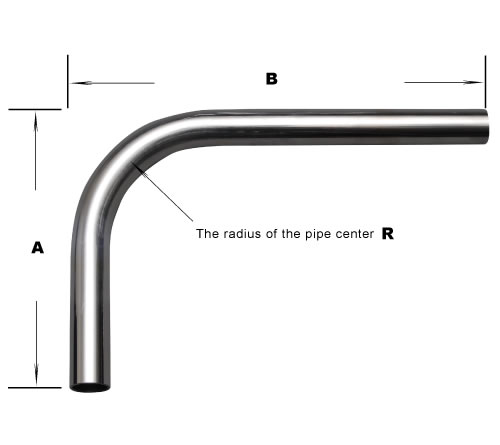

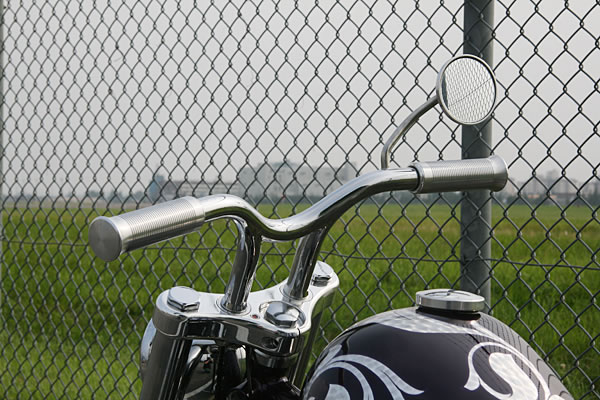

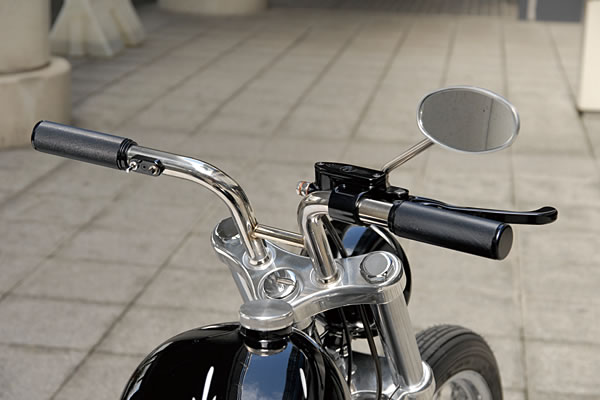

1-inch bend pipe Production example 1 Production example 2

The expansion image can see the image above in the click.
Product # Product name Materials A×B Bending angle Retail price U / M
880150-50 1 inch bend pipe 50R Steel 270×240 R50 ¥ 5,040 Pair
880151-50 1 inch bend pipe 50R Stainless steel 270×240 R50 ¥ 6,090 Pair
880150-65 1 inch bend pipe 65R Steel 285×285 R65 ¥ 5,040 Pair
880151-65 1 inch bend pipe 65R Stainless steel 285×285 R65 ¥ 6,090 Pair
880150-80 1 inch bend pipe 80R Steel 300×190 R80 ¥ 5,040 Pair
880151-80 1 inch bend pipe 80R Stainless steel 300×190 R80 ¥ 6,090 Pair
Joint Riser for Welding On
Joint Riser for Welding On These joint riser used for attaching handles directly to the top bridge are irreplaceable in Customization today.
The lineup features both steel and stainless steel type. Cut the handlebar to desired length, insert the 20mm part into the pipe, and weld to use.
Product # Product name Material Retail price U / M
880160 Joint Riser for Welding On Steel ¥ 5,040 PR
880161 Joint Riser for Welding On Stainless Steel ¥ 7,140 PR

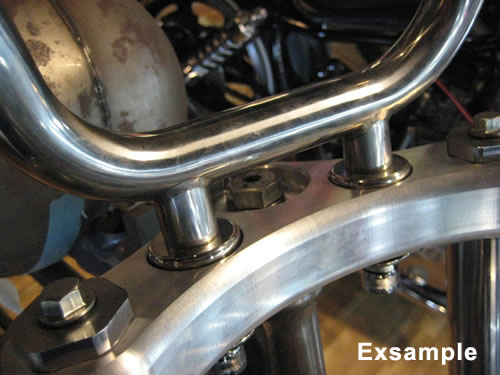

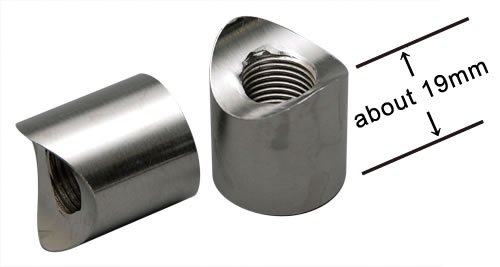

Short Riser for Welding On
Short Riser for Welding On Short Riser for Welding On The lowest riser in our existing products created for customers who wants curtail the height as much as prossible.
The height needed for mounting is 19mm.
Please weld it on the handlebar.
Product # Product name Material Retail price U / M
880165 Short Riser for Welding On Steel ¥ 5,040 PR
880166 Short Riser for Welding On Stainless Steel ¥ 7,140 PR
